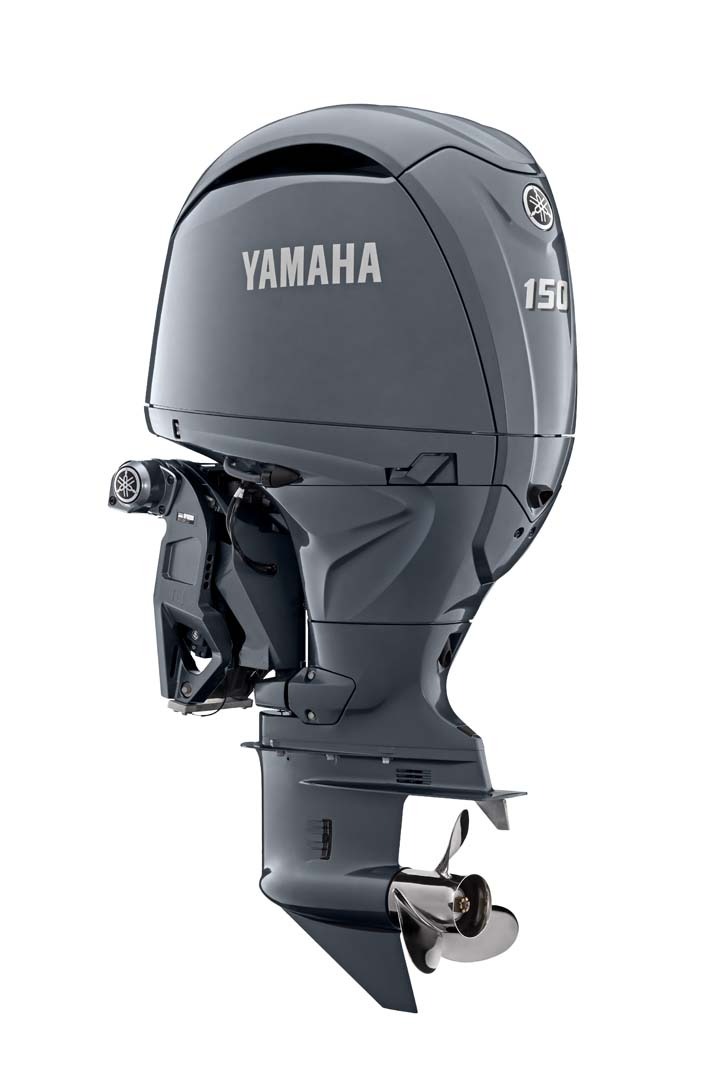

F150XCB Yamaha High Horsepower Four Stroke 150 HP Extra-Long Shaft, Digital Electronic Control, Electric Start, EFI

Back to listings

F150XCB Yamaha High Horsepower Four Stroke 150 HP Extra-Long Shaft, Digital Electronic Control, Electric Start, EFI


$26,161.31
* Supply Price
0
Select Quantity

Item On Order

Item On Order

***Prices are not inclusive of accessories or fitting as required. Yamaha Outboard products are mandatorily required to be installed and delivered by the supplying Yamaha Outboard dealership as specified by Yamaha Australia***

Yamaha’s popular and proven range of F150 Digital and Mechanical Control outboards now feature a newly designed look and integrated steering, taking these engines to the next level when it comes to power, reliability and control.



Boat owners can now choose from Integrated Hydraulic Steering or Integrated Electro-Hydraulic Steering, with both systems housed in a neat, sealed cylinder unit, which is built into the transom bracket of the engine, rather than being a third-party bolt-on component. This results in a simple and clean rigging set-up, and an uncluttered bilge and transom area, while exposing less components to the elements for improved long-term durability and reliability.



The Integrated Electro-Hydraulic Steering models are fully compatible with Yamaha’s exclusive Helm Master EX Autopilot and Joystick system, a must have system for serious fishermen and skippers who demand ultimate boat control.

This new range of four-cylinder integrated steering models are ideal for all applications, including new boat packages, existing boat repowers and multi engine set-ups.

Available in signature Yamaha grey and pearlescent white, the modernised F150 outboards bring a new level of delight to boating.



MODELS F150SA F150CB F150C
Control System Digital Electronic Control (DEC) Digital Electronic Control (DEC) Mechanical Control
(MEC)
Steering System Integrated Electro-Hydraulic Steering (IEHS) Integrated Hydraulic Steering (IHS) Integrated Hydraulic Steering (IHS)
Colour Yamaha Grey or Pearlescent White  Yamaha Grey Yamaha Grey
Helm Master EX Autopilot/Joystick Compatible Yes - -
Counter Rotating Yes - Yes
Transom Height (Shaft Length) mm [inch] X: 642 [25.3] L: 516 [20.4] | X: 642 [25.3] L: 516 [20.4] | X: 642 [25.3]

  • Make: Yamaha
  • Year: N/A
  • Name: F150XCB Yamaha High Horsepower Four Stroke 150 HP Extra-Long Shaft, Digital Electronic Control, Electric Start, EFI
  • Price:
    $26,161.31
  • Condition: New
  • Sku/Code: F150XCB
  • Warranty: Valid
  • Registration Expiry: N/A
  • Registration Number: N/A
  • Stock Number: N/A
  • Engine Type4-Stroke, 16 Valve DOHC Direct Action In-Line 4
  • Bore x Stroke (mm)F150SA & F150CB: 96.0 x 96.2 | F150C: 94.0 x 96.2
  • Fuel Tank Capacity (l)
  • Displacement (cc)F150SA & F150CB: 2785 | F150C: 2670
  • Recommended Maximum RPM5000-6000
  • Fuel ManagementEFI
  • IgnitionTCI
  • Lubrication SystemWet-sump
  • Alternator OutputF150SA & F150CB: 50A | F150C: 35A
  • Gear Ratio2.00 : 1 (Counter Rotating models: LF150XSA & LF150XC)
  • Starter SystemElectric
  • Operation MethodF150SA: DEC/IEHS | F150CB: DEC/IHS | F150C: MEC/IHS
  • Trim and Tilt MethodF150SA & F150CB: TotalTilt™ with Limiter | F150C: Tilt Limiter
  • Digital GaugesOptional
  • Command Link GaugesOptional

























General Features:

  • 16-Valve DOHC Direct-Action In-line 4
  • Precision Multi-Point Fuel Injection System
  • Double overhead camshaft
  • Compatible with Yamaha’s new electronic rigging system
  • Freshwater Flushing device
  • 45A alternator & ECM
  • Supplied with Rig Kit B2
